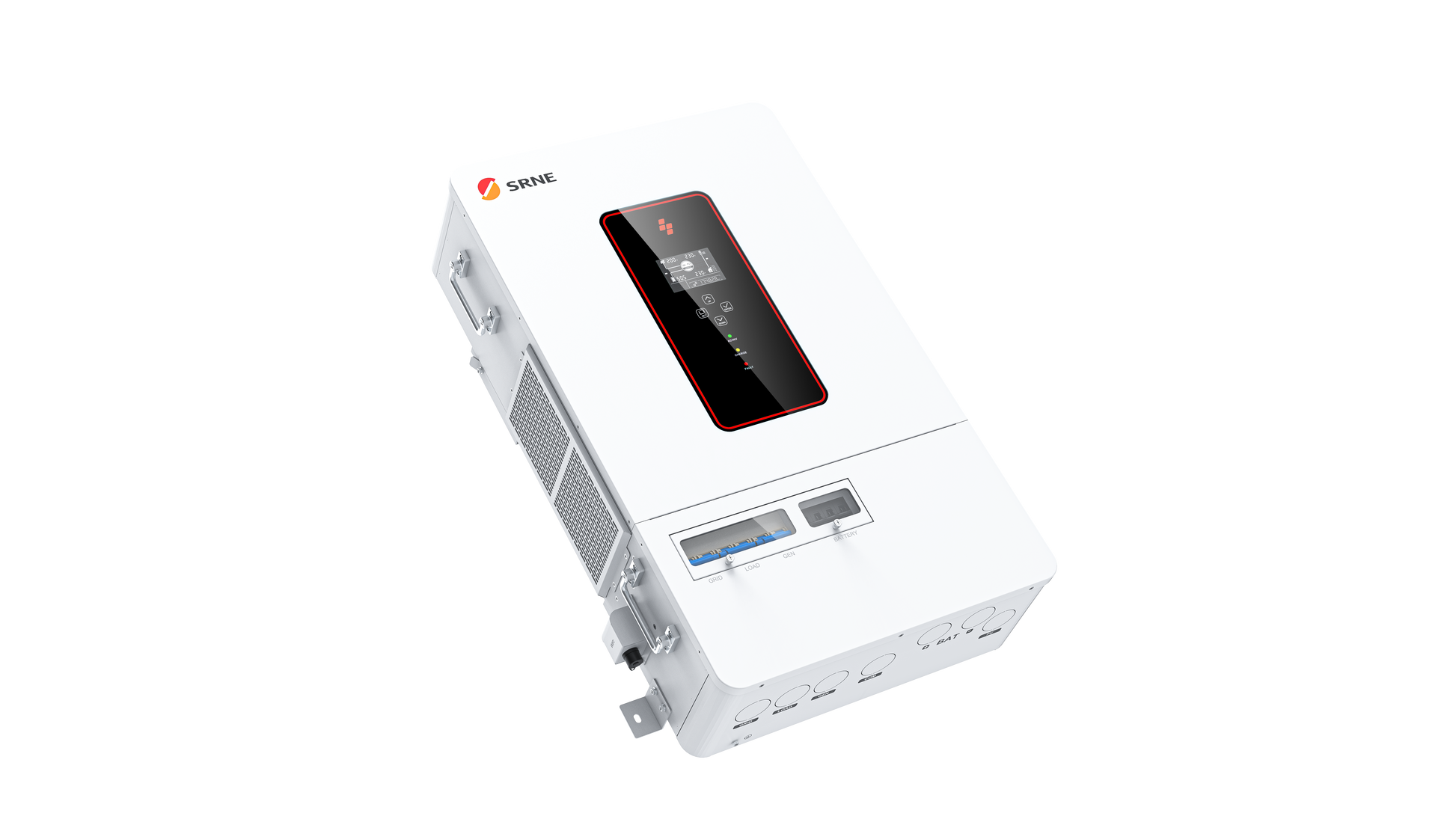

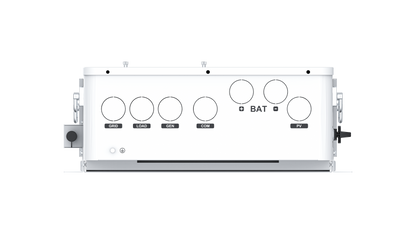

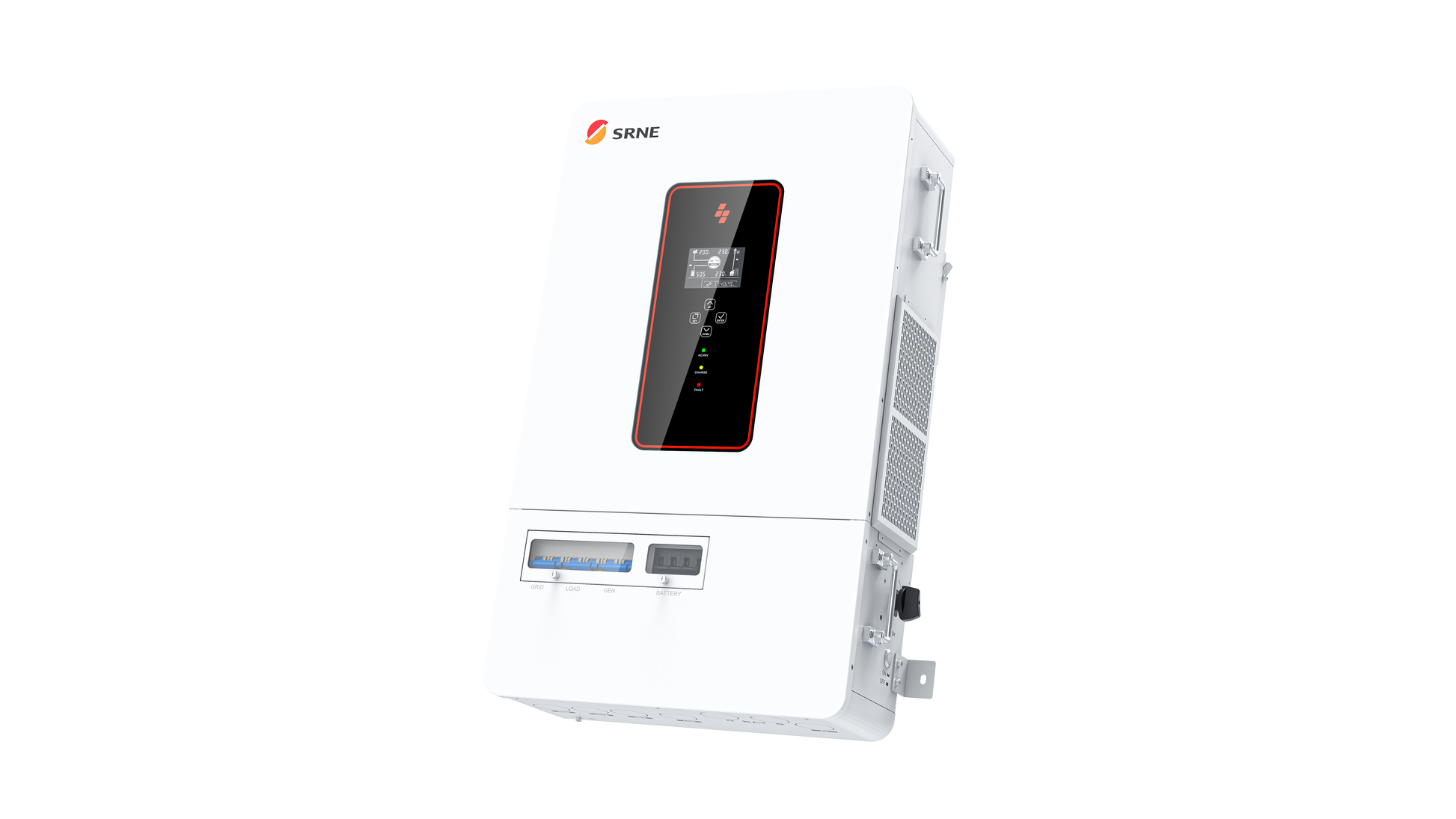

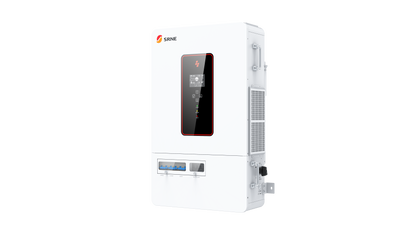

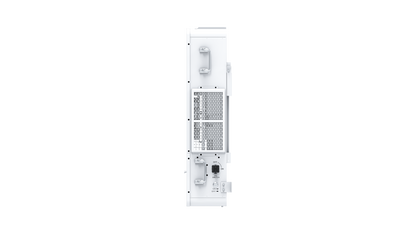

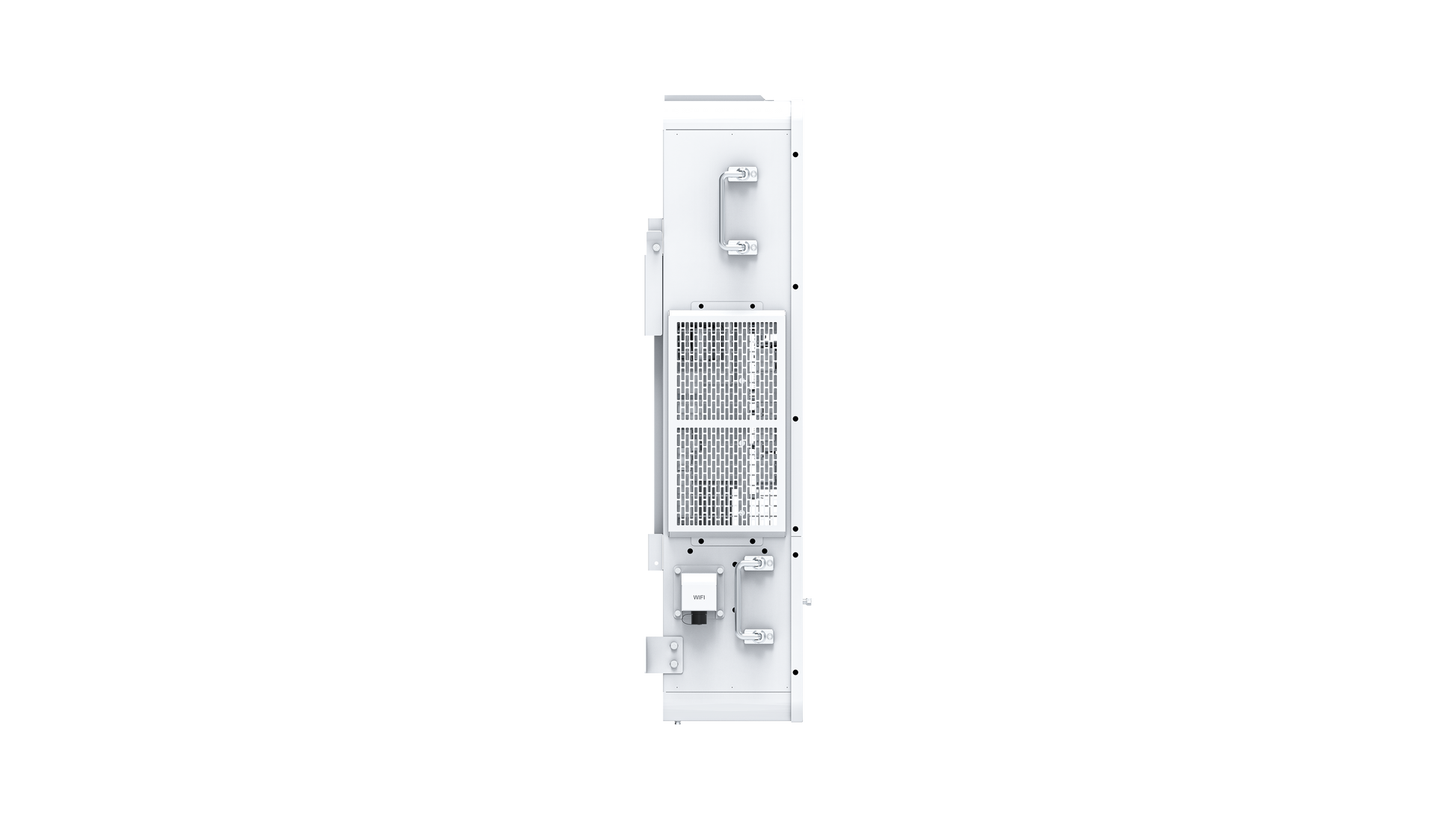

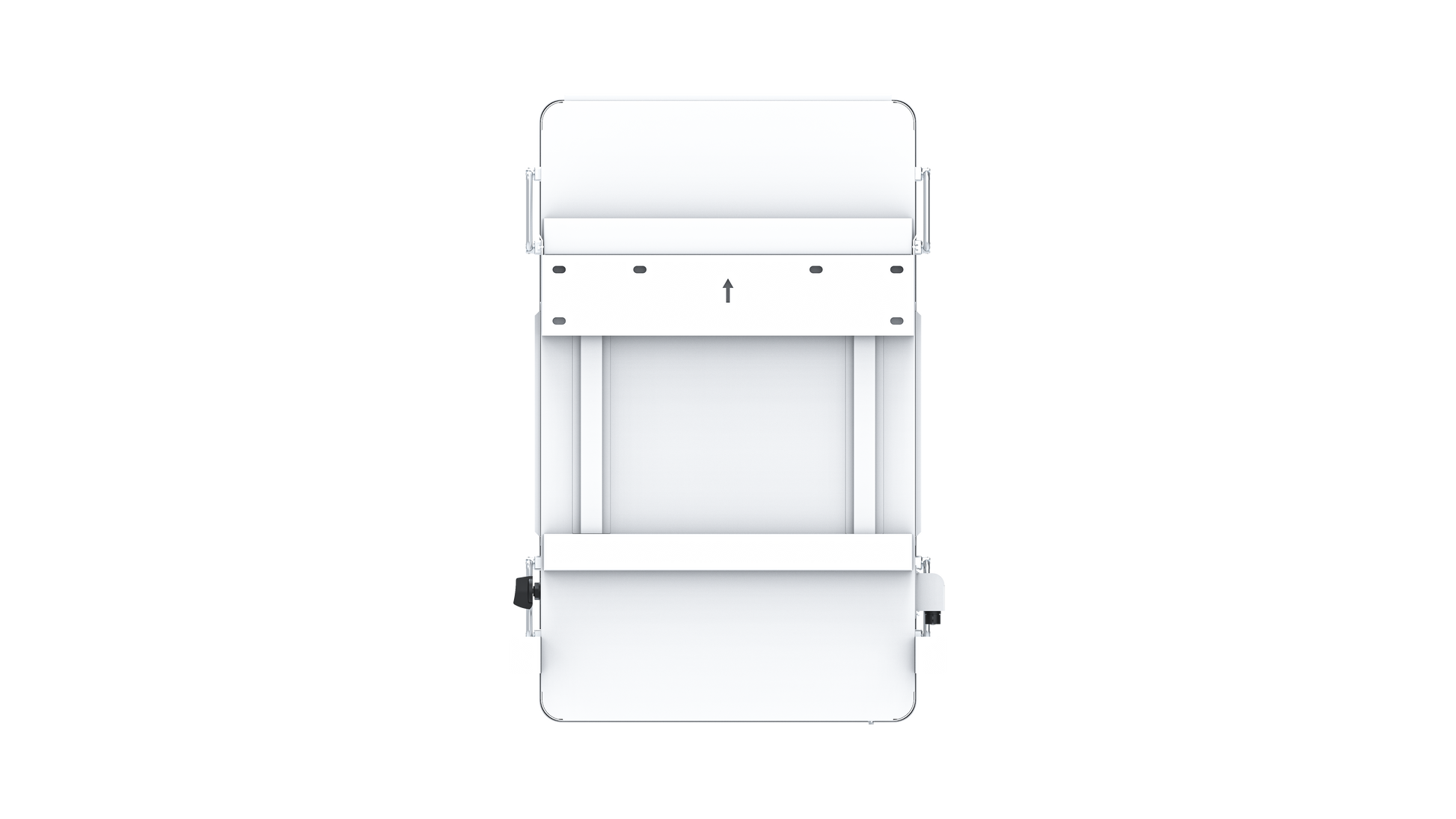

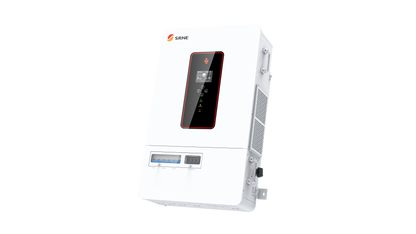

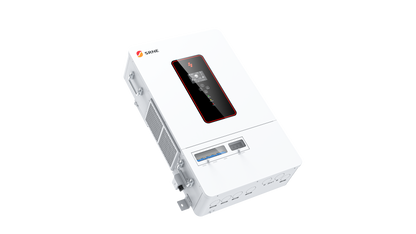

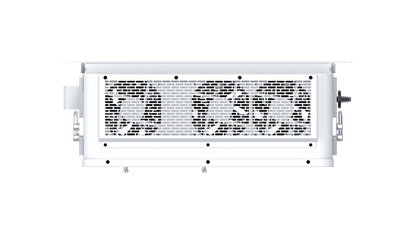

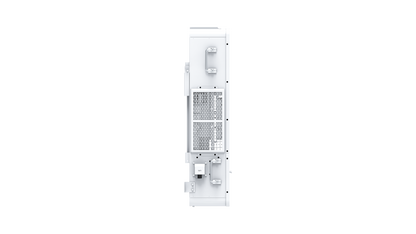

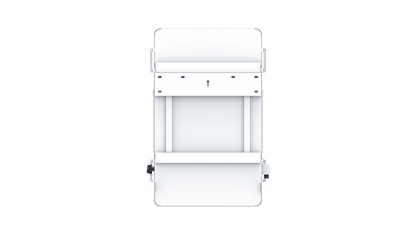

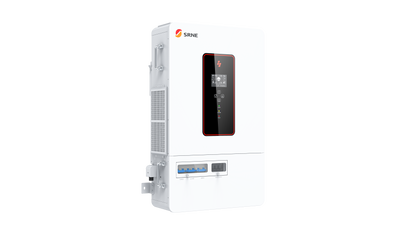

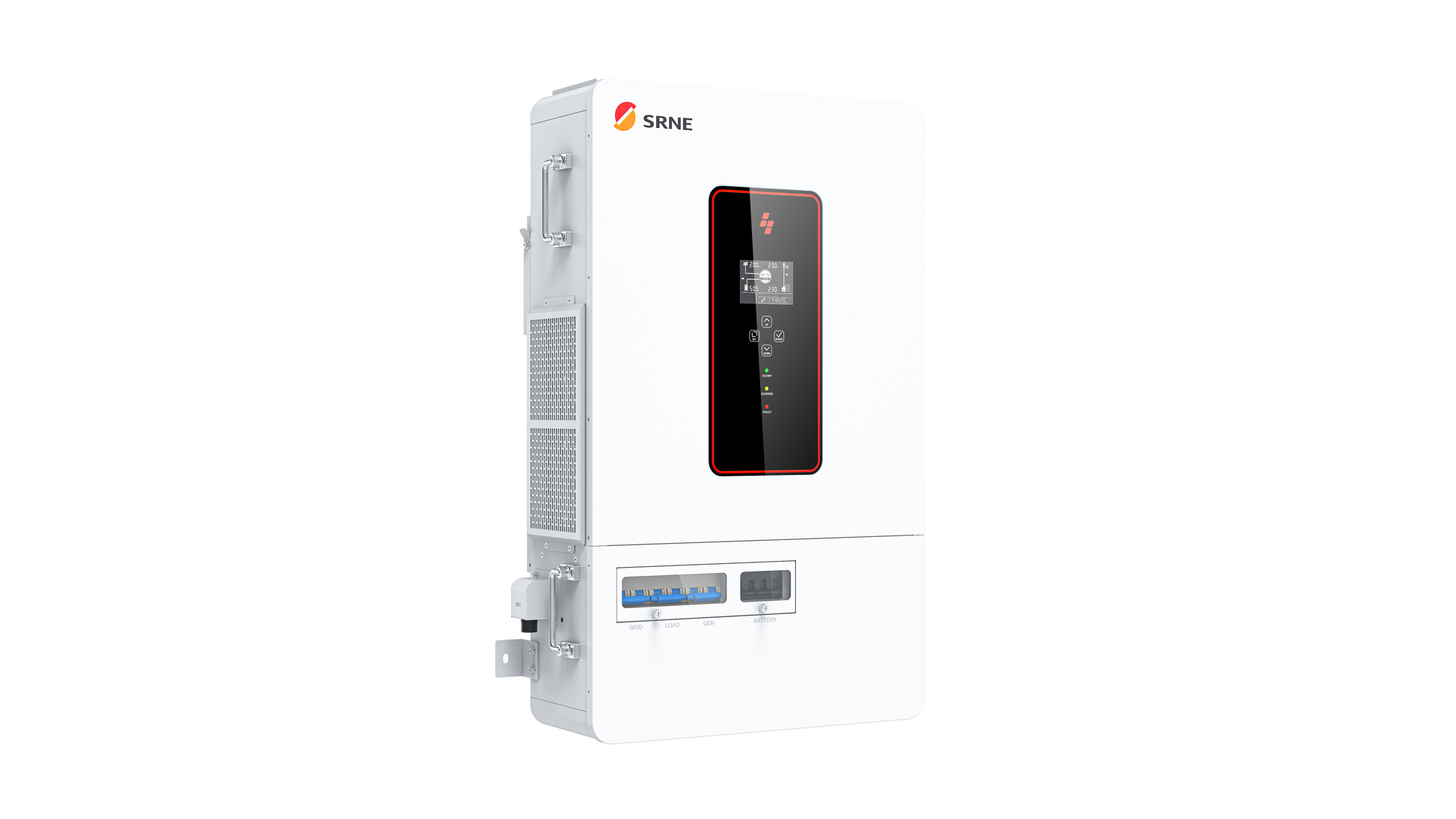

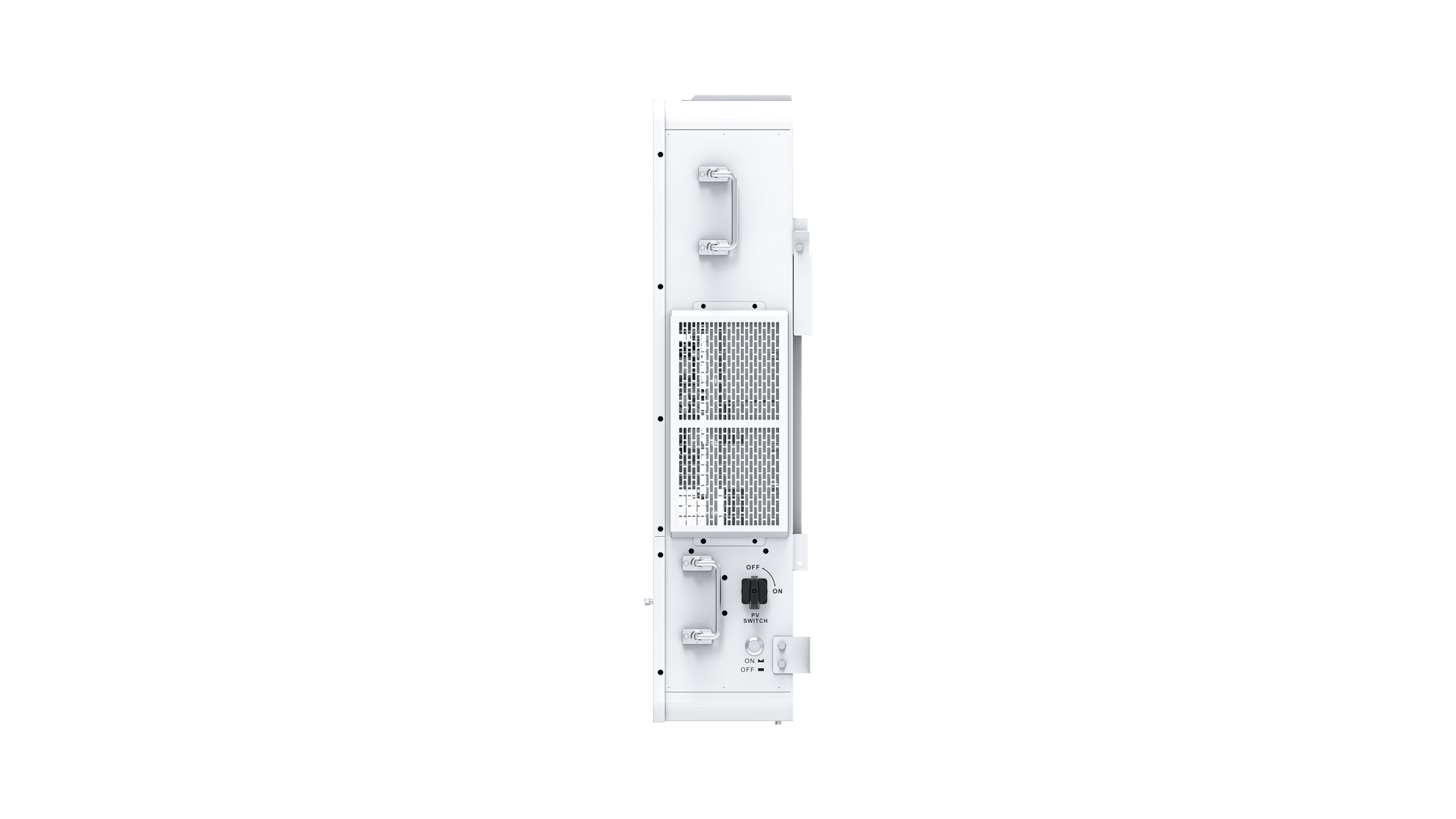

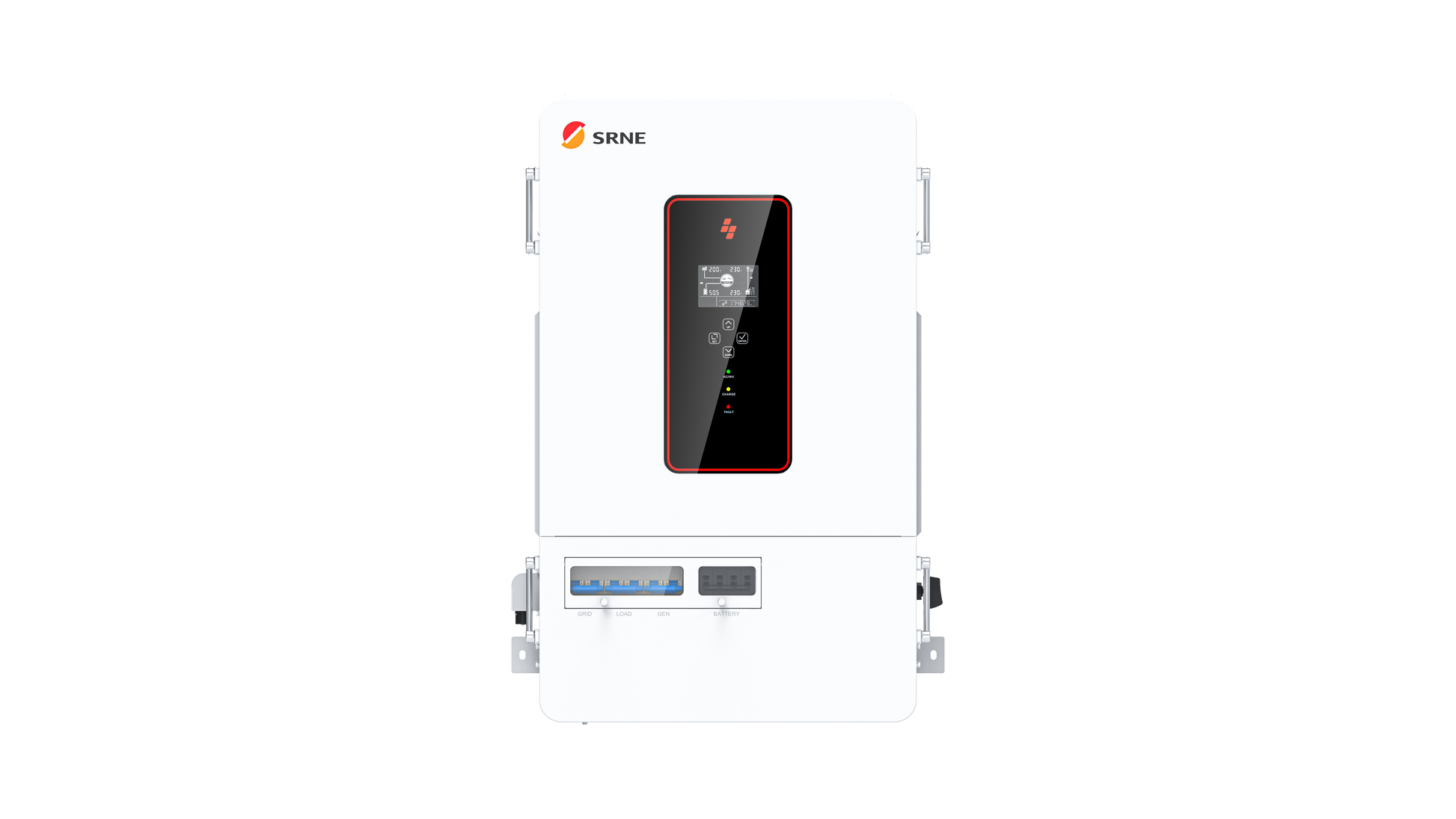

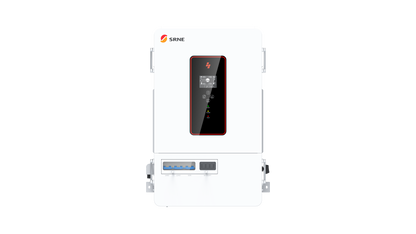

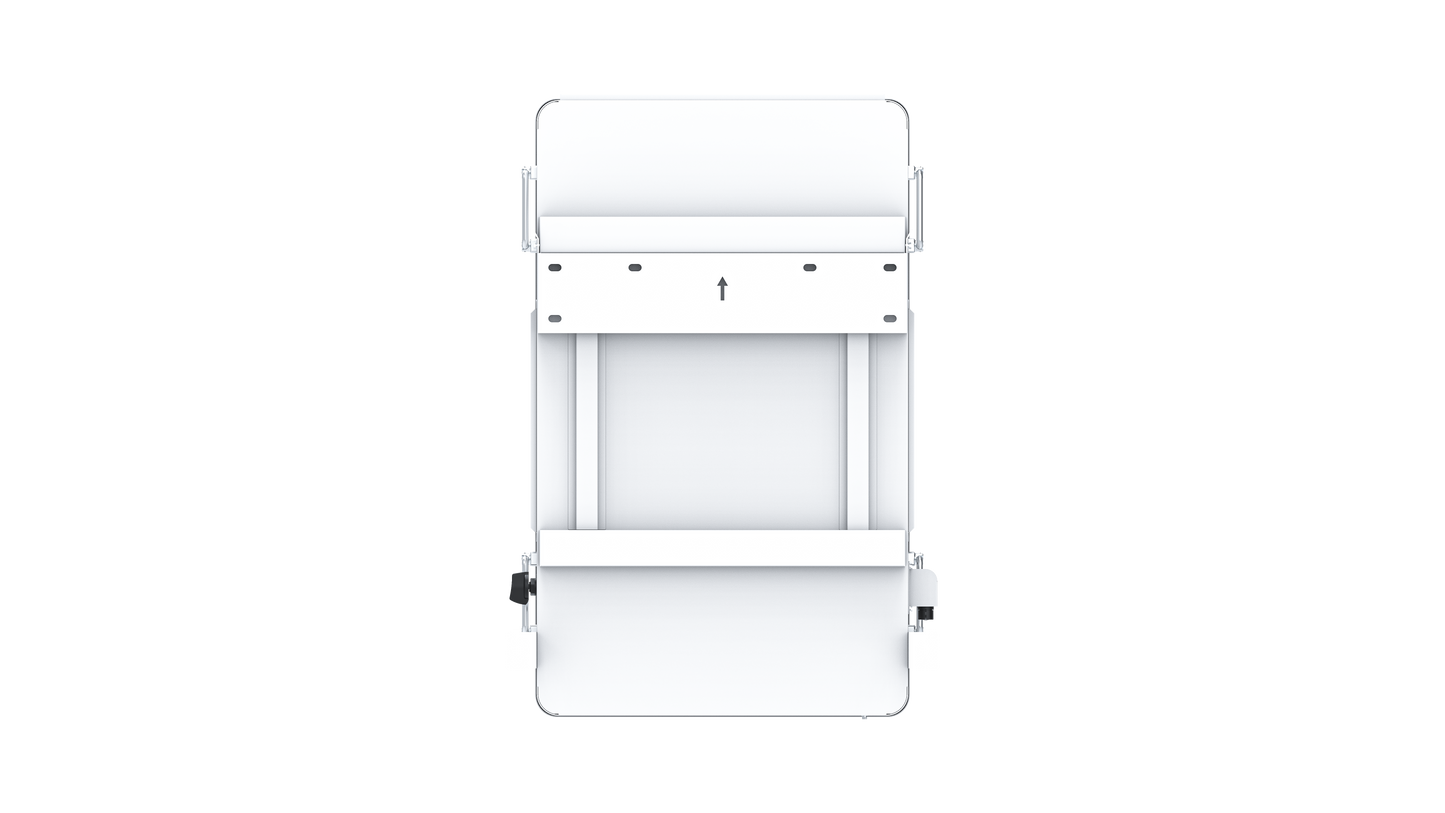

ASP 14-16kW Single/Split Phase Low Voltage

ASP Off-Grid Solar Storage Inverter

Model ASP48160U300-H
Rated Voltage 120Vac Single Phase/240Vac Split-phase
Rated Power 16kW
Max. Peak Power 2 times rated power, 10s
Battery Voltage 48V
Max. Charging Current 300A
Num. of MPPT 2
Max. PV Input Power 12,000W+12,000W
Max. PV Input Voltage 650Vdc+650Vdc
Num. of Parallel 1-6 units
Dimension 848.7*514*190mm
Weight 47.5kg
Protection Degree IP20
Warranty 2 years
